 Base
and chair rail patterns are ordered in straight lengths
and do not need to be pre-formed by the factory. Mouldings
can be ordered in even foot increments from a minimum
of five feet to the full length of the tooling. There
is an exception with some smaller profiles such as base
shoe which is available in full lengths only. |
|
ULTIMATE FLEX casing
is used mostly for radius, arched, round and elliptical
openings. In most applications, ULTIMATE FLEX is used
only on the curved portion of the opening, while the
matching wood moulding is used on the straight runs.
NOTE: Every pattern has limitations on how tight a radius
it can be formed into. If your order includes a part
that has to be in a tight radius, check with our office
before ordering. |
| (Works
in Internet Explorer & Safari) |
|
|
| A) |
Need inside
radius (Opening width divided by two). |
| B) |
Length needed = radius plus the width of the moulding in inches times 3.14. Divide
that number by 12, then round up to the next foot
.
See radius footage guide for quick reference |
|
 |
 |
|
|
A) Paper
or cardboard template needed.
NOTE: Every pattern has limitations on how tight
a radius it can be formed into. If your order includes
a part that has to be in a tight radius, check with
our office before writing the order. |
|
|
|
| When ordering
crown moulding it is necessary for you to: |
| • |
Supply the factory with the
radius of the wall |
| • |
Whether it is concave or convex |
| • |
Which side of the crown
is being mounted against the wall. |
|
 |
|
|
| Available in standard or machinable materials, adjustable mould produces STRAIGHT
S4S blanks, in any dimension up to a maximum of: |
| • |
2 inches thick,
12 inches wide, 12 feet long |
| • |
No set up charges for straight S4S custom size blanks |
| • |
All S4S blanks are wide
belt sanded to match millwork standards |
| • |
Use for short runs to match your custom wood profiles |
| • |
Excellent for Extended Jamb
stock or Radius Arch Jambs |
|
NOTE: When ordering for machining,be
sure to specify Machinable S4S. |
|
 |
|
| Our
standard STRAIGHT S4S mould requires no set up
charges and can come in any size blanks shown below
for regular S4S material: |
| • |
Up to 2 inches thick,
Up to 12 inches wide, Up to
12 feet long, minimum 5 foot lengths |
| • |
No setup charges for straight
S4S custom size blanks |
| • |
All S4S blanks are wide-belt
sanded to match millwork standards |
| • |
Use for short runs to match
your custom wood profiles |
| • |
Excellent for Extended Jamb
Stock or Radius Arch Jambs |
| NOTE: When
ordering for machining,be sure to specify Machinable
S4S. |

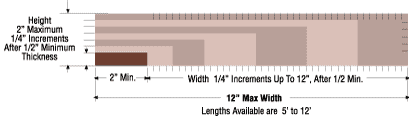

| Our
Machinable STRAIGHT S4S mould requires no setup
charges and can come in any size blanks shown on
the guide below: |
| • |
No setup charges
for straight S4S custom size blanks |
| |
|
| NOTE: When
ordering for machining, be sure to specify Machinable
S4S. |
|
|
|
 |
|
|
|
